Wednesday, November 30, 2016

Install SQL Server 2016 SP1 and get productivity enhancements

SQL Server 2016 Service Pack 1 is released  and now generally available(GA).

According to the above release blog:

Many of the features (listed in the table here) available in Enterprise Edition are now available in several other editions as well after installing the SP1 (Standard, web, express and LocalDB).


Note that Change Data Capture requires SQL Server Agent not available in Express and In Memory OLTP not possible in LocalDB due to security reasons

DBCC CLONEDATABASE added supports cloning of CLR, Filestream/Filetable, Hekaton and Query Store objects are available after installing SP1

DBCC CLONEDATABASE  (source_database_name, target_database_name)    –– Default CLONE WITH SCHEMA, STATISTICS and QUERYSTORE metadata.
DBCC CLONEDATABASE  (source_database_name, target_database_name) WITH NO_STATISTICS                                                                                               –– SCHEMA AND QUERY STORE ONLY CLONE
DBCC CLONEDATABASE  (source_database_name, target_database_name) WITH NO_QUERYSTORE                                                                                              –– SCHEMA AND STATISTICS ONLY CLONE
DBCC CLONEDATABASE  (source_database_name, target_database_name) WITH NO_STATISTICS,NO_QUERYSTORE                                                          –– SCHEMA ONLY CLONE

New Create/Alter supports modifying and deploying database objects such as
Stored Procedures,
User–Defined Functions, and

This is just a short list from more than a dozen others. Make sure you visit the link referenced at the top.

The SQL Server 2016 Enterprise specific sample database, WorldWorldImporters can now be used in Standard and Express editions.

Download SQL Server 2016 SP1 here .

Monday, November 28, 2016

Using JSON Validator in SQL Server

The Transact-SQL IsJSON() tests whether a expression(string) is JSON valid. If it is valid you should get a 1 as return value, a zero(0) if it is not valid and a null if the expression is null.

How do you use it?

This is a json string, a very simple one:
{"wclass":{"student":["jay", "john", "sam"]}}
The following code snippet shows how you may use it:
declare @json nvarchar(150)SET @json=N'{"wclass":{"student":["jay", "john", "sam"]}}';
Select ISJSON(@json)

When you run this in the SQL Server 2016 query pane, you get the return value 1 (see image below).

Sunday, November 27, 2016

Retrieve data from SQL Anywhere 17 in JSON format

SQL Anywhere 17 is a SAP Database.  Some of the earlier versions were released by SYBASE.

In SQL Anywhere 17 you have three different ways of getting JSON formatted data / JSON document.

You can use the FOR JSON clause  with:

  • SELECT Statement
  • Subqueries
  • Queries having Group By clause
  • Aggregate Functions and
  • Views
The result is a JSON array consisting of:

  • Scalar elements
  • Objects
  • Arrays
There are three ways of calling the FOR JSON Clause:

  • For JSON Raw
  • For JSON Explicit
Note that SQL Server 2016 did get JSON support for the first time and has only For JSON Auto clause.

You run SQL Queries in Interactive SQL. Here is an example of a query that provides json document using the FOR JSON AUTO clause.


Thursday, November 24, 2016

Problem connecting to SQL Anywhere 17 to Power BI using OLE DB - the workaround

 This is a continuation of my previous post wherein the Power BI created connection string spawned an error.

In the previous post we saw that the following connection information did not work.

I changed the connection string by using database instead of Initial Catalog and it seemed to work by displaying the demo database database objects in the Navigator.

However attempting to expand any of them displayed other error messages. Also, even without changing initial catalog to database displayed the same objects in the Navigator.

There are no other connections to this database and it is not to reason out this error.

It was then decided to try out the Advanced Option in the From OLE DB dialog.

Used the same Connection Information and then in the Advanced Option dialog inserted a SELECT query (you can use any other query) and clicked OK. However there was one more dialog requesting Username/Password.

The response was correctly returned as shown.

I believe the From OLE DB stage of the wizard is not working too well unless you use the Advanced Option. Even with SQL Server 2016, the problem was if one did not use the Advanced Option (this has not been tested yet) the connection will open all the objects on the server and not just the one chosen with the Data Link stage of the wizard.

Wednesday, November 23, 2016

Problem connecting to SQL Anywhere 17 to Power BI using OLE DB

SQL Anywhere 17 is a relational database from SAP. The earlier editions were from the parent company Sybase.

SQL Anywhere 17 is a SAP database. The earlier editions were from the parent company Sybase.

Start SQL Central which is like SQL Server Management Studio for SQL Server and connect to SQL Anywhere Demo 17 database with credentials dba/sql.

Launch Power BI and click on Get Data and choose From OLE DB. Click on Build to open Data Link Properties as shown.


Choose SQL Anywhere OLE DB Provider 17 from the above drop-down.
Click Next. Provide User Name and Password and click allow saving password and browse to find the database demo. as shown


Click demo and click Test Connection.
This should display a success message as shown.


Click OK. The From OLE DB window gets filled as shown.


Again the Access a datasource using OLEDB Provider comes up as shown. Actually this UI needs to be better designed. The credentials were already entered in a previous wizard screen.


Again use the dba/sql password and click connect.

Looks like the Power BI does not accept the UI designed connection string


The connection string was created by Power BI after accepting valid entries. Looks like there is a problem.

 This is being looked into and come back to this site. The work around will be posted as soon as it is found.

Tuesday, November 22, 2016

Creating a report using JSON formatted data with Power BI - Part 2

This is a continuation of my previous post.

Once the query is properly created turning it into a report in Power BI is quite easy. It takes only a couple of clicks. Here is the last query in the previous post.

The column data types are text and you need to change them. Clicking each column you can change the data type. The title_id is kept as is text. The qty was changed to whole number as well as the ytd_sales column. The Amount column was changed to decimal. Here are the allowed data types in PowerBI.

Now that the plot data is ready you can click the first menu item, Close & Apply in the Query editor.

Now you place Id in the Axis and the other three (Qty, Ytd_Sales, Amount) in the value fields to display a Clustered Column Chart as shown.
or a Multi-row card report as shown.

You can also choose any other chart type.

Sunday, November 20, 2016

Creating a report using JSON formatted data with Power BI - Part 1

Power BI supports retrieving data from a variety of data sources that includes data in JSON format.

In the post you will learn how to retrieve JSON data from SQL Server 2016. You then retrieve this data into Power BI to create a report.

Creating a report requires massaging the JSON data retrieved using the Power BI user interface.

Creating JSON formatted data:

If you want to know how to retrieve JSON formatted data from your database in SQL Server go here:

Here is the data that is going to be used in this post. The data is from a query against the pubs database (original compatibility 100) whose compatibility is changed to work with SQL Server 2016.


You can run the query and save it as a file. Make sure there are neither extraneous characters in the file (like some sql message) nor does it have white spaces in side the JSON data.

Getting JSON Data into Power BI:

It is very easy to get the JSON data into Power BI. Just use the Get Data menu item in Power BI.

If you want to know details of how to retrieve JSON formatted data into Power Bi go here:

The data that was created in SQL Server is now retrieved into Power BI.

This is the first step. The data comes into Power BI as a list.

 This is the formula behind this.
You can convert this list into a table using the menu ribbon item To Table in Convert.
After this the UI appears as shown with the list converted to a table.


This is the formula behind this conversion:
= Table.FromList(Source, Splitter.SplitByNothing(), null, null, ExtraValues.Error)
When you click on a single  record this is what you see.


The first record has three items shown at the bottom.

Now you can expand the record by clicking on the icon shown on the column 1 to split it into the items by continuously clicking it.

First cancel the dialogue that showed up earlier. Next click on Column1 and then click the icon to expand the column.

This is what happens the first click.


After clicking OK, this is what you will see in the Power BI UI.

The formula behind the above is as shown here:
= Table.ExpandRecordColumn(#"Converted to Table", "Column1", {"qty", "title_id", "titles"}, {"Column1.qty", "Column1.title_id", "Column1.titles"})
As you can see that Column1.titles is still a list (and therefore can be expanded).
This can be further split by clicking on the icon in Column1.titles.

When you click this icon, you will see the following change.
You will observe that the list goes over into Record and the following is displayed.


Click OK.
The display changes to this.


Observe that there are no more columns ot be expanded.
The formula now appears as shown:
= Table.ExpandRecordColumn(#"Expanded Column1.titles2", "Column1.titles", {"Amount", "ytd_sales"}, {"Column1.titles.Amount", "Column1.titles.ytd_sales"})

Renaming the columns

You can right click on a column and from the drop-down menu rename it. The renamed columns appear like this as shown below. while renaming a column, you may get a message Insert Step. Just click Insert for the message and go to the next column.


The formula behind the above is this:
= Table.RenameColumns(#"Expanded Column1.titles3",{{"Column1.qty", "qty"}, {"Column1.title_id", "title_id"}, {"Column1.titles.Amount", "titles.Amount"}, {"Column1.titles.ytd_sales", "titles.ytd_sales"}})
The various steps to get to this stage is shown here:


Now we have prepared the query and ready to create a report.

Continued in Part 2 here:
Creating a report using JSON formatted data with Power BI - Part 2

Thursday, November 17, 2016

Retrieving JSON data in Power BI

JSON is another source of data that can be used in Power BI in its October Update. This post shows how you may do it.

I need to construct some JSON data. I will use the SQL Server 2016 to create data in JSON formatted form using the FOR JSON AUTO clause in a SQL Query as shown.
SELECT        Person.Person.BusinessEntityID, Person.Person.FirstName, Person.Person.MiddleName, Person.PersonPhone.PhoneNumber
FROM            Person.EmailAddress INNER JOIN
                         Person.Person ON Person.EmailAddress.BusinessEntityID = Person.Person.BusinessEntityID INNER JOIN
                         Person.PersonPhone ON Person.Person.BusinessEntityID = Person.PersonPhone.BusinessEntityID
       Where PhoneNumber like '808%'
For JSON Auto

In returning the response, I will return it to a file using the Query | Results To | Results to File item in SSMS.

I will save the file to a location of my choice as AdvWrks.json

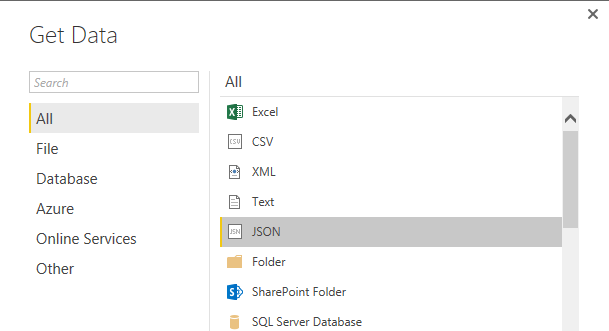

I launch POWER BI and in the Get Data menu items, pick JSON as shown here:


This action takes me to File Open dialog and I pick up the saved file AdvWrks.json.

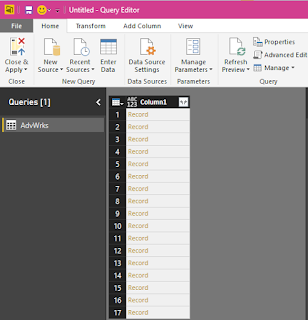

This opens the Poweer BI's Query Editor as shown


This is a list and you can use the List Ribbon items.

Each of the 17 rows returned by the SQL Query is represented in a Record in the List. It is a hyperlink to the items in the record as we will presently see.

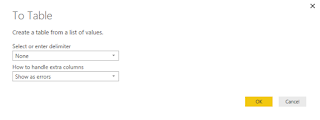

You can also convert it to a table by clicking on the 'To Table' ribbon item. Which brings up the window.


Just accept default and click OK.This produces a table as shown.


If you liked this, you may also want to read these:

Tuesday, November 15, 2016

Power BI connecting to SQL Server 2016 via OLE DB

October update of Power BI allows you to connect to SQL Server 2016 using OLE DB Connectivity.

This post shows you how in just a few steps.

Launch Power BI from its shortcut on the desktop as shown. It may message you about auto recovery of files. Do not worry about it.


Click Get Data from the toolbar. Get data page is opened displaying all the data ssources from which you retrieve your data.


Click on 'Other' to reveal data sources contained therein as shown.


Now click on OLE DB and click Connect at the bottom to open the next dialog as shown.


At this step you are going to build the part of a connection string with non-credential properties.

Click Build and the Data Link Properties window gets displayed wherein you find a  OLE DB Providers for various types of data sources.


In the present case pick SQL Server Native Client 11.0 as native clients are generally faster. After highlighting SQL Server Native Client 11.0 click Next.

You need to select by entering the name of the server. Click on the handle tor eveal all SQL Servers as shown.


Click HOEDENTAK8\OHANA which is a named instance pf SQL Server 2016. Click Use Windows NT Integrated security for the log information. For the third items click on the handle for the database selection as shown.


Choose AdventureWorks2014 and click Test Connection. You should get the following message.


Click OK and you get returned to the From OLE DB window displaying the connection string as shown.


Notice that although you provided authentication information it was not registered (probably by design).

Click OK. The Navigator opens as shown.


You can choose table or tables to continue. Here it is looking at the Address for Person as shown.


This completes using the OLE DB connectivity using the Native Provider. It will probably allow you to create reports etc.

Two things bother me, one is the authentication and the other relates to the objects exposed. I did choose AdventureWorks2014 but it exposes everything on the server. Should it be like this?

Monday, November 14, 2016

Problem installing October update to Power BI

I faced the problem installing October update to Power BI. The problem was that the installer brought up a message regarding an already running Power BI. I did not have any Power BI running although I had the previous version installed. I also looked up the Task Manager and no such program was running.

Finally, I tried by right clicking the PBDesktop_x64.msi and picking up the Trouble Compatibility item drop-down menu. After following the wizard I could install Power BI.


I tested the program and it got installed.

Sunday, November 13, 2016

Creating a OLE DB file connection to SQL Server 2016

OLE DB and ODBC connectivity are useful connectivity options that needs no emphasizing.

This post describes that you can connect to SQL Server 2016 in just a few steps.

Step 1:
Launch SQL Server Instance if it has not started, using Control Panel or otherwise.

Step 2: Create a new text document from desktop. Right click desktop  (empty region) and click New | Text Document.

Rename the document. If it is New Text Document.txt change it to, for example, SQLServer2016.udl (as in the present case).

You may get a warning that changing the file name extension may become unusable. Click Yes.
The document gets saved to the desktop with the name and extension you provided. The icon of the document will also be changed.

Step 3: Configuring the connection

Right click the somename.udl you created to display the following:


The file properties window has four tabs, Provider, Connection, Advanced and ALL.

In the Provider tabbed page you need to enter the Server Name or use the Refresh button to find all the regsitered servers as shown.


You have two options in connecting to a SQL Server instance, Use Windows NT Integrated Security or use Specific Username and password.

The SQL Server Instance OHANA is configured for Windows Login. Click the first option. You need not provide username/password (they will be greyed out).

Select the database on the server using the drop-down as shown. Choose AdvenutreWorks2015.


If the SQL Server has not started you may get these warnings when you try to browse for the SQL Server.


After choosing the Server and the database you are basically done. You can test the connection by clicking the button and you would get this reply.
